Achieving advanced thermodynamic performance in critical metal castings requires base materials that offer exceptional chemical purity. Engineered specifically as a premium alloy additive, High Purity Electrolytic Manganese Metal Flakes EMM for Alloy Manufacturing provides an optimal solution for high-growth industrial manufacturing. Distributed globally by ZhenAn, our bulk supply allocations provide the necessary structural foundations to achieve Improved Strength and Corrosion Resistance across severe engineering environments.
Material Definition of High Purity Electrolytic Manganese Metal Flakes

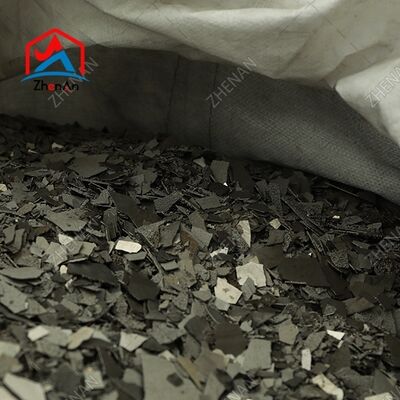

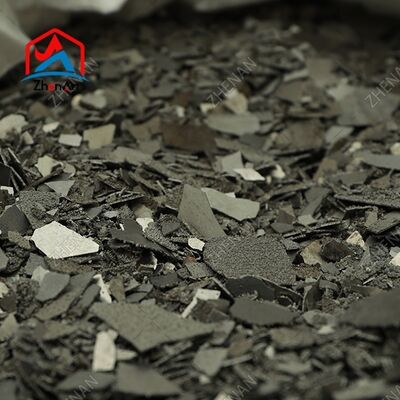

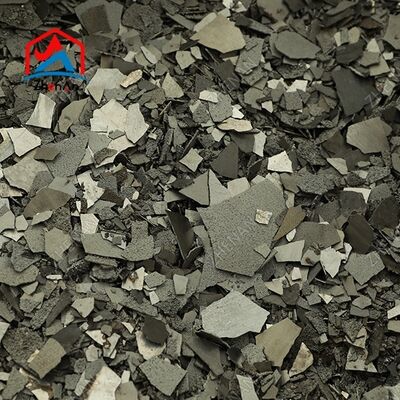

In modern industrial manufacturing, High Purity Electrolytic Manganese Metal Flakes EMM for Alloy Manufacturing refers to refined elemental manganese produced through hydrometallurgical extraction and electrodeposition. This highly pure flake electrolytic manganese material forms brittle crystalline sheets with an irregular structure. Its surface exhibits a bright, metallic silver appearance on the cathode deposition face, contrasting with a dull, slightly rough grayish-brown finish on the reverse side.
By bypassing traditional high-temperature carbon reduction methods, this process delivers a guaranteed Mn 99.7% Minimum threshold. Metallurgical engineering teams select these high purity manganese flakes because they lack the high iron and carbon additions found in standard bulk ferroalloys. This makes them ideal for producing advanced stainless steels and high-performance non-ferrous structures.
Manufacturing Process for Metallurgical Grade Manganese Flakes
Manufacturing highly reliable, uniform metallurgical grade manganese flakes requires a continuous multi-stage chemical purification process:
- Acid Digestion: Crude manganese oxide or carbonate ores are processed with hot sulfuric acid (H₂SO₄) to convert insoluble manganese minerals into a soluble manganese sulfate (MnSO₄) solution.
- Chemical Purification: Ammonium sulfide ((NH₄)₂S) and neutralizers are mixed into the solution to selectively precipitate out heavy metal impurities such as iron, nickel, cobalt, copper, and zinc.
- Electrodeposition: The purified liquid is pumped into specialized electrolytic tanks containing stainless steel or titanium cathodes. A high-amperage direct current causes pure manganese ions to form uniform metallic layers on the plates.
- Stripping & Processing: The metallic layers are mechanically detached, washed with weak acids, dried thoroughly, and crushed to meet specific sizing distributions.
Premium EMM Chemical Specifications
To avoid trace element contamination in advanced vacuum induction furnaces, every batch must strictly adhere to an official, verified EMM chemical specification. The reference data below displays standard international parameters:
| Elemental Parameter |
Electrolytic Manganese 99.7 Purity |
High Grade Manganese Flakes (99.8%) |
| Manganese (Mn) Content ≥ |
99.70% |
99.80% |
| Carbon (C) Load ≤ |
0.04% |
0.01% |
| Sulfur (S) Level ≤ |
0.03% |
0.02% |
| Phosphorus (P) Limit ≤ |
0.005% |
0.003% |
| Iron (Fe) Fraction ≤ |
0.02% |
0.01% |
| Silicon (Si) Residue ≤ |
0.01% |
0.005% |
Physical Specifications and Sizing
Managing the physical Manganese Flake Size Specification protects raw materials during shipping and ensures efficient, reliable dissolution in production furnaces:
- Structural Thickness Profile: Flakes typically feature a thickness of 1.0mm to 3.0mm. This profile prevents the metal from breaking down into fine dust during mechanical feeding, minimizing handling waste and structural oxidation.
- Sizing Dimensions: Irregular lateral sizing averages 10mm to 40mm, providing a high surface-area-to-volume ratio that allows the material to dissolve rapidly in liquid steel.
- Surface Passivation: Advanced anti-oxidation treatments protect the flakes from ambient moisture, keeping the material stable and free-flowing during long-term storage.
Applications Beyond Metallurgy
While metallurgy remains its primary use, high-purity manganese flakes serve as vital raw materials in high-growth green energy technologies:
- Lithium-Ion Cathode Synthesis: Pure EMM flakes serve as the key chemical precursor for manufacturing battery-grade Manganese Sulfate (MnSO₄). This chemical forms the core of high-energy density NMC and lithium manganese iron phosphate (LMFP) electric vehicle batteries.
- Advanced Electronic Coatings: Used to synthesize high-purity manganese oxides (Mn₃O₄) for soft ferrite ceramics, ensuring reliable magnetic performance in high-frequency power transformers.
Benefits of Low Carbon Manganese Metal
Using Low Carbon Manganese Metal is critical for protecting high-performance alloys from intergranular corrosion and stress cracking:
- Eliminating Carbide Precipitation: Relying on premium low carbon electrolytic manganese allows steelmakers to achieve tight manganese specifications without risking carbon pickup. This prevents chromium carbide formation along grain boundaries, preserving the metal's natural corrosion resistance.
- Austenite Structural Stabilization: It expands and stabilizes the non-magnetic fcc austenite phase matrix, acting as a highly cost-effective substitute for volatile nickel components in 200-series stainless steels.
Comparison: Manganese Metal 99.7% vs 75% Ferromanganese
Selecting between ultra-pure manganese metal 99.7% and lower-grade bulk ferroalloys depends heavily on your furnace's allowable impurity limits:
| Structural Dimension |
Manganese Metal 99.7% (EMM) |
High-Carbon Ferromanganese (HCFeMn) |
| Pure Mn Weight Fraction |
≥ 99.7% |
65.0% - 78.0% Base |
| Carbon Impurity Level |
≤ 0.04% Max (Ultra-Low) |
6.0% - 8.0% (High Carbon Risk) |
| Companion Iron Load |
Negligible (≤ 0.02%) |
Balances to 100% (High Fe Carryover) |
Procurement and Quality Assurance
Procuring raw materials through an experienced global partner like ZhenAn requires structured trade and verification protocols:
- Rigorous Chemical Validation: Verify that each batch is shipped alongside certified X-ray fluorescence (XRF) or ICP-OES analysis sheets confirming Low Phosphorus Manganese limits.

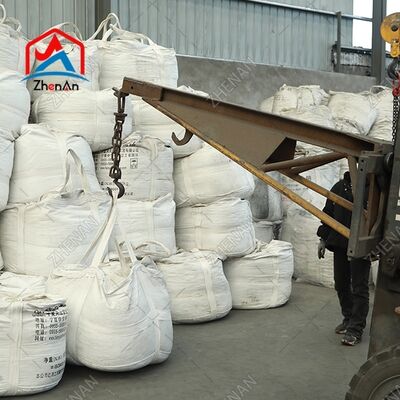

- Standard Packaging Configurations: Ensure shipments utilize verified standard packaging protocols, such as manganese flakes packed in drums/bags (typically 1000kg flexible bulk intermediate bags with thick internal plastic liners) to block ambient humidity.
- Direct Supply Coordination: Secure factory-direct pricing through the technical export division at ZhenAn
Frequently Asked Questions
What is the difference between high purity electrolytic manganese and standard manganese materials?
High purity electrolytic manganese is produced using an aqueous electrochemical deposition process that yields a minimum purity of 99.7% manganese. In contrast, standard manganese materials, such as ferromanganese or silicomanganese, are produced in blast or electric arc furnaces. These standard materials contain significant amounts of carbon (up to 8%) and iron, making them unsuitable for clean or low-carbon steel production.
Why is low impurity electrolytic manganese preferred for alloy manufacturing?
Low impurity EMM is preferred because it gives metallurgical engineers precise control over the alloy's composition without introducing trace elements like carbon, phosphorus, or sulfur. This level of purity is essential when manufacturing advanced alloys where even tiny amounts of contaminants can degrade mechanical integrity and weldability.
How do Fe, Si, C, P, and S impurities affect EMM performance?
Trace impurities can significantly alter alloy properties. Excess iron (Fe) and silicon (Si) alter the targeted base structure of non-ferrous mixtures. Carbon (C) can lead to carbide precipitation, which reduces corrosion resistance. Phosphorus (P) and sulfur (S) concentrate along grain boundaries, causing hot-shortness during rolling and decreasing the impact toughness of the finished metal.
How does electrolytic manganese improve alloy mechanical properties?
Electrolytic manganese acts as an effective solid-solution strengthener within metallic crystal matrices. It increases the alloy's work-hardening capacity, yield strength, and resistance to impact wear. Additionally, it helps deoxidize steel melts and binds with trace sulfur to form stable manganese sulfides, preventing hot-embrittlement during forging.
What industries use high purity electrolytic manganese metal flakes?
EMM flakes are widely used in the stainless steel industry (especially for 200 and 300 series grades), the aluminum foundry sector (for high-strength aerospace and automotive sheets), and nickel-copper alloy production. They are also increasingly used in the chemical energy storage industry to manufacture battery-grade manganese sulfate for electric vehicle batteries.
How does EMM contribute to improved strength and corrosion resistance?
EMM improves strength by modifying grain boundaries and increasing grain refinement during cooling. It boosts corrosion resistance by stabilizing the ductile austenite phase in stainless steel and eliminating the impurities that cause galvanic corrosion cells, ensuring long-term durability in aggressive environments.
What particle size and flake specifications are available for electrolytic manganese?
Standard specifications feature a thickness between 1.0mm and 3.0mm, with an irregular lateral particle size ranging from 10mm to 50mm. For specialized applications, suppliers can provide briquetted formats or finely crushed powders, though care must be taken with powders to avoid air oxidation and dust hazards during handling.
How can buyers evaluate electrolytic manganese metal quality before purchase?
Buyers can evaluate quality by reviewing certified Certificates of Analysis (COA) for each batch, checking for ISO 9001 quality management compliance, and ordering representative pre-shipment samples for independent XRF or ICP-OES laboratory analysis. Partnering with a verified supplier like ZhenAn (+86 15518824805) ensures full traceability and consistent quality across bulk shipments.
